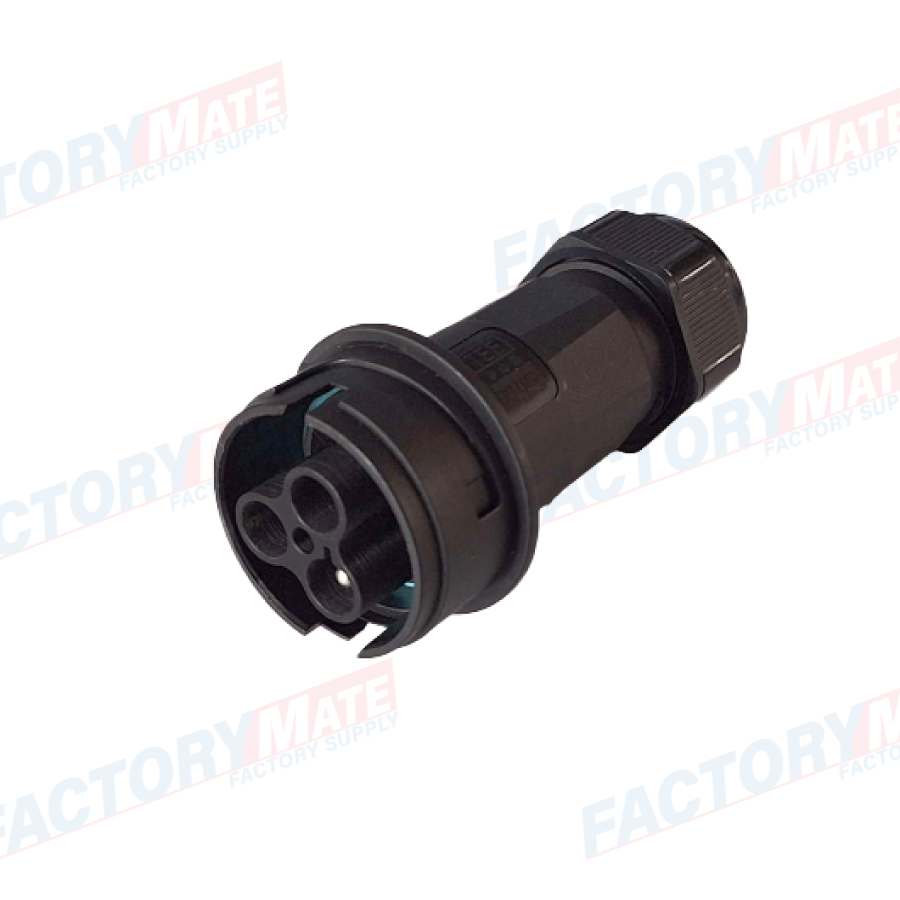

Plug Connector 3p 4MMQ D10-16.5 IP66/IP68 UP

Socket Connector 3p 4MMQ D10-16.5 IP66/IP68 UP
Plug and socket connectors for cable-to-cable, panel-mounting and special types with high performance. Modular connection systems with the aim of ensuring flexibility, fast installation and low costs in the configuration and maintenance of increasingly complex systems and machinery.

General Information
Type of installation: Plug and Socket connector
Product configuration: Plug connector
Locking mechanism: Bayonet Lock
Colour: Black (Plastic components) - Techno green (Silicone components)
Overall dimensions (mm): Ø 38.0 x 79.0
Overall dimensions when mated together (mm): Ø 38.0 x 139.0

Electric Data
No. connected cables: 1
Circuit wiring diagram: Power
Current rating (AC/DC): 32A
Voltage rating (AC/DC): 500V *electrical data to be confirmed
Double insulated (Class II): II
Impulse withstand voltage: 6kV *electrical data to be confirmed
No. poles: 3
Marking: L-N-E
Terminations: Screw

Connection Data
Multi-stranded conductor cross-section without ferrule MIN (mm²): 0.50
Multi-stranded conductor cross-section without ferrule MAX (mm²): 4.00
Solid conductor cross-section MIN (mm²): 0.50
Solid conductor cross-section MAX (mm²): 4.00
Conductor stripping length (mm): 6.00
Cable sheath stripping length (mm): 35.00
Cable diameter MIN (mm): 10.00
Cable diameter MAX (mm): 16.50
Tightening torque of nut-cable gland: 2.5 Nm

Environment Conditions
IP rating: IP66, IP68 *IP68 (5m/1h)
IK rating: IK08 *IK08 is for linear plug and socket configuration
Salt MistSalt mist test : EN60068-2-11:2000
Mating cycles: 1000 cycles
Ambient temperature MIN/MAX (According to EN61984/EN60998): -40°C/+125°C
Operating temperature MAX: +100°C
Proof Tracking Index (PTI): PTI 175
