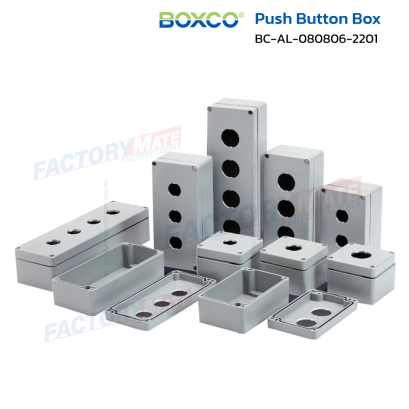

Aluminium Push Button Boxes

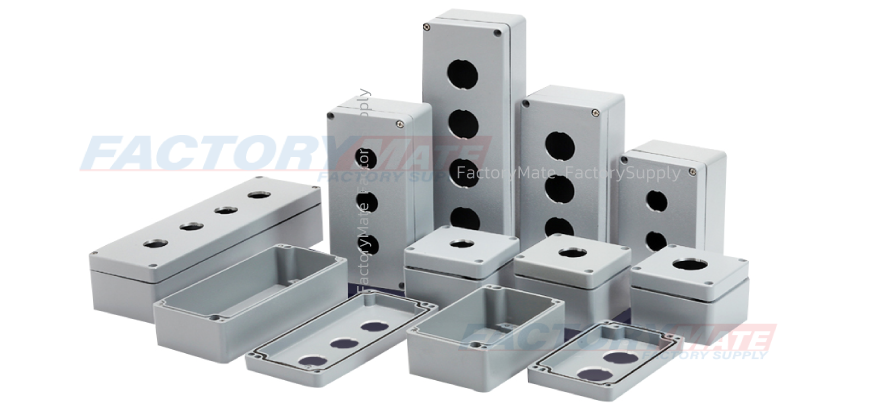

ALUMINIUM PUSH BUTTON BOXES
FEATURE
- Screw type, RAL 7001
SPECIFICATION
- IP Rating | IP66/67
- IK Rating | IK08
- Certification|TUV, CE, UL
S SERIES Model Name
FEATURE
- Screw type, RAL 7001
SPECIFICATION
- IP Rating | IP66/67
- IK Rating | IK08
- Certification|TUV, CE, UL

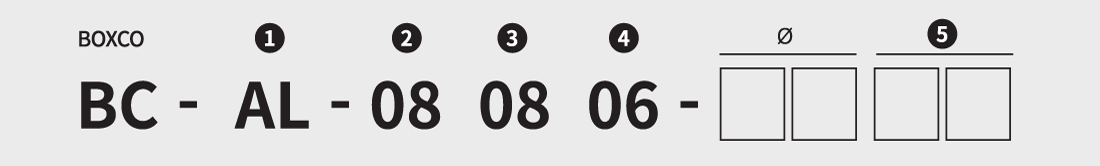

S SERIES Model Name
➊ Material | Aluminium diecasting
➋ Width | (W)
➌ Length | (L)|
➍ Height | (H) Cover Included
➎ Hole |
➋ Width | (W)
➌ Length | (L)|
➍ Height | (H) Cover Included
➎ Hole |
| ABS-PC | ALUMINIUM | ||||||
|---|---|---|---|---|---|---|---|
| Size(included cover) | Model | Size(included cover) | Model | Hole | |||
| W X L X H(mm) | W X L X H(inch) | W X L X H(mm) | W X L X H(inch) | ||||
| 80x110x70 | 3.15x4.33x2.76 | BC-AGS-081107-2201 | 80x75x57 | 3.14x2.95x2.24 | BC-AL-080806-2201 | 22 | 1 HOLE |
| 80x110x85 | 3.15x4.33x3.35 | BC-AGS-081108-2201 | 80x75x70 | 3.14x2.95x2.75 | BC-AL-080807-2201 | 22 | 1 HOLE |
| 80x130x70 | 3.15x5.12x2.76 | BC-AGS-081307-2202 | 80x125x57 | 3.14x4.92x2.24 | BC-AL-081306-2202 | 22 | 2 HOLE |
| 80x130x85 | 3.15x5.12x3.35 | BC-AGS-081308-2202 | 80x125x70 | 3.14x4.92x2.75 | BC-AL-081307-2202 | 22 | 2 HOLE |
| 80x180x70 | 3.15x7.09x2.76 | BC-AGS-081807-2203 | 80x175x57 | 3.14x6.88x2.24 | BC-AL-081806-2203 | 22 | 3 HOLE |
| 80x180x85 | 3.15x7.09x3.35 | BC-AGS-081808-2203 | 80x175x70 | 3.14x6.88x2.75 | BC-AL-081807-2203 | 22 | 3 HOLE |
| 80x250x70 | 3.15x9.84x2.76 | BC-AGS-082507-2204 | 80x250x57 | 3.14x9.84x2.24 | BC-AL-082506-2204 | 22 | 4 HOLE |
| 80x250x85 | 3.15x9.84x3.35 | BC-AGS-082508-2204 | 80x250x70 | 3.14x9.84x2.75 | BC-AL-082507-2204 | 22 | 4 HOLE |
| 80x110x70 | 3.15x4.33x2.76 | BC-AGS-081107-2501 | 80x75x57 | 3.14x2.95x2.24 | BC-AL-080806-2501 | 25 | 1 HOLE |
| 80x110x85 | 3.15x4.33x3.35 | BC-AGS-081108-2501 | 80x75x70 | 3.14x2.95x2.75 | BC-AL-080807-2501 | 25 | 1 HOLE |
| 80x130x70 | 3.15x5.12x2.76 | BC-AGS-081307-2502 | 80x125x57 | 3.14x4.92x2.24 | BC-AL-081306-3002 | 25 | 2 HOLE |
| 80x130x85 | 3.15x5.12x3.35 | BC-AGS-081308-2502 | 80x125x70 | 3.14x4.92x2.75 | BC-AL-081307-3002 | 25 | 2 HOLE |
| 80x180x70 | 3.15x7.09x2.76 | BC-AGS-081807-2503 | 80x175x57 | 3.14x6.88x2.24 | BC-AL-081806-2503 | 25 | 3 HOLE |
| 80x180x85 | 3.15x7.09x3.35 | BC-AGS-081808-2503 | 80x175x70 | 3.14x6.88x2.75 | BC-AL-081807-2503 | 25 | 3 HOLE |
| 80x250x70 | 3.15x9.84x2.76 | BC-AGS-082507-2504 | 80x250x57 | 3.14x9.84x2.24 | BC-AL-082506-2504 | 25 | 4 HOLE |
| 80x250x85 | 3.15x9.84x3.35 | BC-AGS-082508-2504 | 80x250x70 | 3.14x9.84x2.75 | BC-AL-082507-2504 | 25 | 4 HOLE |
| 80x110x70 | 3.15x4.33x2.76 | BC-AGS-081107-3001 | 80x75x57 | 3.14x2.95x2.24 | BC-AL-080806-3001 | 30 | 1 HOLE |
| 80x110x85 | 3.15x4.33x3.35 | BC-AGS-081108-3001 | 80x75x70 | 3.14x2.95x2.75 | BC-AL-080807-3001 | 30 | 1 HOLE |
| 80x130x70 | 3.15x5.12x2.76 | BC-AGS-081307-3002 | 80x125x70 | 3.14x4.92x2.75 | BC-AL-081307-3002 | 30 | 2 HOLE |
| 80x130x85 | 3.15x5.12x3.35 | BC-AGS-081308-3002 | 80x125x57 | 3.14x4.92x2.24 | BC-AL-081306-3002 | 30 | 2 HOLE |
