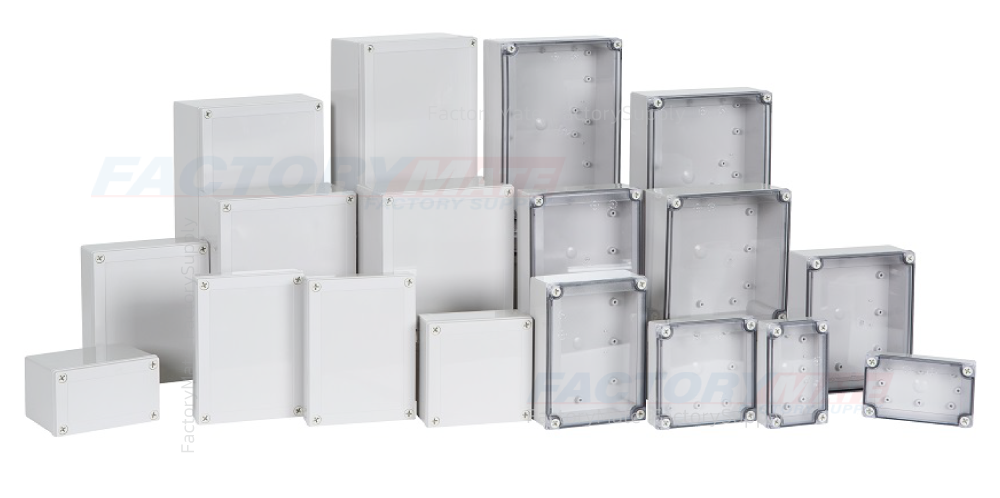

M-Series

M - SERIES
FEATURE
- Screw type with recessed cover
- For mounting membrane keypad
SPECIFICATION
- IP Rating | IP66/67
- IK Rating | IK08
- Temperature Range | ABS : - 40 ~ + 70 Polycarbonate(PC) : - 40 ~ + 110
- Flammability Rating | ABS : 94-HB Polycarbonate(PC) : 94-V-0, 5VA, HB
- Certification|TUV, CE, UL

M SERIES Model Name


Size(included cover)		Model				Mounting Plate
W X L X H (mm)	W X L X H (inch)	ABS		PC		Steel 1.6mm	Plastic 3~4.5mm
W X L X H (mm)	W X L X H (inch)	Grey cover	Transparent cover	Grey cover	Transparent cover	Steel 1.6mm	Plastic 3~4.5mm
80x130x35	3.15x5.12x1.38	BC-AGM-081303	BC-ATM-081303	BC-CGM-081303	BC-CTM-081303	0813 M	0813 P
80x130x40	3.15x5.12x1.58	BC-AGM-081304	BC-ATM-081304	BC-CGM-081304	BC-CTM-081304	0813 M	0813 P
80x130x50	3.15x5.12x1.97	BC-AGM-081305	BC-ATM-081305	BC-CGM-081305	BC-CTM-081305	0813 M	0813 P
80x130x60	3.15x5.12x2.36	BC-AGM-081306	BC-ATM-081306	BC-CGM-081306	BC-CTM-081306	0813 M	0813 P
80x130x75	3.15x5.12x2.95	BC-AGM-081307	BC-ATM-081307	BC-CGM-081307	BC-CTM-081307	0813 M	0813 P
80x130x85	3.15x5.12x3.35	BC-AGM-081308	BC-ATM-081308	BC-CGM-081308	BC-CTM-081308	0813 M	0813 P
80x130x100	3.15x5.12x3.94	BC-AGM-081310	BC-ATM-081310	BC-CGM-081310	BC-CTM-081310	0813 M	0813 P
80x130x110	3.15x5.12x4.33	BC-AGM-081311	BC-ATM-081311	BC-CGM-081311	BC-CTM-081311	0813 M	0813 P
80x130x125	3.15x5.12x4.92	BC-AGM-081312	BC-ATM-081312	BC-CGM-081312	BC-CTM-081312	0813 M	0813 P
100x100x35	3.94x3.94x1.38	BC-AGM-101003	BC-ATM-101003	BC-CGM-101003	BC-CTM-101003	-	1010 P
100x100x50	3.94x3.94x1.97	BC-AGM-101005	BC-ATM-101005	BC-CGM-101005	BC-CTM-101005	-	1010 P
100x100x60	3.94x3.94x2.36	BC-AGM-101006	BC-ATM-101006	BC-CGM-101006	BC-CTM-101006	-	1010 P
100x100x75	3.94x3.94x2.95	BC-AGM-101007	BC-ATM-101007	BC-CGM-101007	BC-CTM-101007	-	1010 P
130x130x35	5.12x5.12x1.38	BC-AGM-131303	BC-ATM-131303	BC-CGM-131303	BC-CTM-131303	1313 M	-
130x130x50	5.12x5.12x1.97	BC-AGM-131305	BC-ATM-131305	BC-CGM-131305	BC-CTM-131305	1313 M	-
130x130x60	5.12x5.12x2.36	BC-AGM-131306	BC-ATM-131306	BC-CGM-131306	BC-CTM-131306	1313 M	-
130x130x75	5.12x5.12x2.95	BC-AGM-131307	BC-ATM-131307	BC-CGM-131307	BC-CTM-131307	1313 M	-
130x130x85	5.12x5.12x3.35	BC-AGM-131308	BC-ATM-121707	BC-CGM-131308	BC-CTM-131308	1313 M	-
130x130x100	5.12x5.12x3.94	BC-AGM-131310	BC-ATM-131310	BC-CGM-131310	BC-CTM-131310	1313 M	-
130x130x110	5.12x5.12x4.33	BC-AGM-131311	BC-ATM-131311	BC-CGM-131311	BC-CTM-131311	1313 M	-
130x130x125	5.12x5.12x4.92	BC-AGM-131312	BC-ATM-131312	BC-CGM-131312	BC-CTM-131312	1313 M	-
130x180x35	5.12x7.09x1.38	BC-AGM-131803	BC-ATM-131803	BC-CGM-131803	BC-CTM-131803	1318 M	1217 P
130x180x50	5.12x7.09x1.38	BC-AGM-131805	BC-ATM-131805	BC-CGM-131805	BC-CTM-131805	1318 M	1217 P

พบสินค้า 4 ชิ้น

BC-ATM-182510 BOXCO M-Series, Screw Type, IP66/67

BC-ATM-182510

Boxco M-Series, Enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength. Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage.

ขายแล้ว 0 ชิ้น

฿0 ฿0

เปรียบเทียบ

BC-ATM-131803 BOXCO M-Series, Screw Type, IP66/67

BC-ATM-131803

Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength.

ขายแล้ว 0 ชิ้น

฿0 ฿0

เปรียบเทียบ

BC-ATM-081306 BOXCO M-Series, Screw Type, IP66/67

BC-ATM-081306

Boxco M-Series, Screw type with recessed cover. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing.

ขายแล้ว 0 ชิ้น

฿0 ฿0

เปรียบเทียบ

BC-ATM-181807 BOXCO M-Series, Screw Type, IP66/67

BC-ATM-181807

Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength.

ขายแล้ว 0 ชิ้น

฿0 ฿0

เปรียบเทียบ
