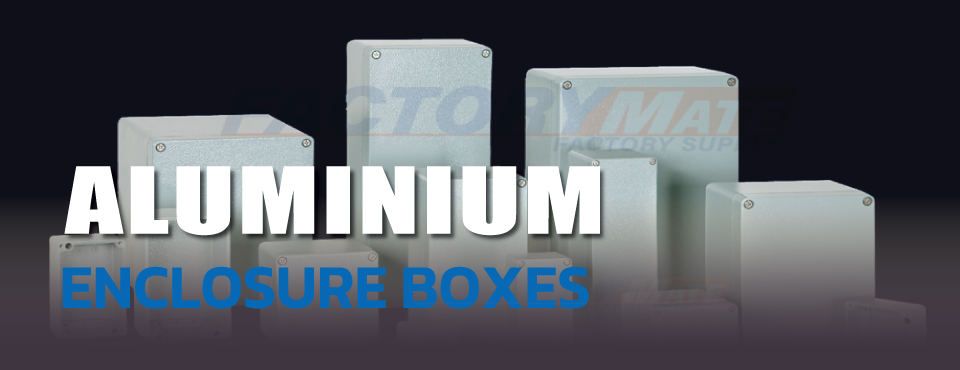

Aluminium Enclosure
| Size(included cover) | Model | Mounting Plate | ||
|---|---|---|---|---|
| W X L X H(mm) | W X L X H(inch) | Aluminum box | Steel | Size |
46x51x32 | 1.81x2.00x1.25 | BC-AL-050503 | ||
64x58x34 | 2.51x2.28x1.33 | BC-AL-060603 | ||
64x58x46 | 2.51x2.28x1.81 | BC-AL-060605 | ||
64x98x34 | 2.51x3.85x1.33 | BC-AL-061003 | ||
64x98x46 | 2.51x3.85x1.81 | BC-AL-061005 | ||
64x150x34 | 2.51x5.90x1.33 | BC-AL-061503 | ||
64x150x46 | 2.51x5.90x1.81 | BC-AL-061505 | ||
80x75x57 | 3.14x2.95x2.24 | BC-AL-080806 | 0808A | |
80x75x70 | 3.14x2.95x2.75 | BC-AL-080807 | 0808A | |
80x125x57 | 3.14x4.92x2.24 | BC-AL-081306 | 0813A | |
80x125x70 | 3.14x4.92x2.75 | BC-AL-081307 | 0813A | |
80x175x57 | 3.14x6.88x2.24 | BC-AL-081806 | 0818A | |
80x175x70 | 3.14x6.88x2.75 | BC-AL-081807 | 0818A | |
80x250x57 | 3.14x9.84x2.24 | BC-AL-082506 | 0825A | |
80x250x70 | 3.14x9.84x2.75 | BC-AL-082507 | 0825A | |
100x100x81 | 3.93x3.93x3.18 | BC-AL-101008 | 1010A | |
100x160x81 | 3.93x6.29x3.18 | BC-AL-101608 | 1016A | |
120x122x81 | 4.72x4.80x3.18 | BC-AL-121208 | 1212A | |
120x220x81 | 4.72x8.66x3.18 | BC-AL-122208 | 1222A | |
120x220x91 | 4.72x8.66x3.58 | BC-AL-122209 | 1222A | |
120x360x81 | 4.72x14.17x3.18 | BC-AL-123608 | 1236A | |
150x132x90 | 5.90x5.19x3.54 | BC-AL-151309 | 1513A | |
160x160x91 | 6.29x6.29x3.58 | BC-AL-161609 | 1616A | |
160x210x100 | 6.29x8.26x3.93 | BC-AL-162110 | 1621A | |
160x260x91 | 6.29x10.23x3.58 | BC-AL-162609 | 1626A | |
160x360x91 | 6.29x14.17x3.58 | BC-AL-163609 | 1636A | |
180x180x101 | 7.08x7.08x3.97 | BC-AL-181810 | 1818A | |
230x200x111 | 9.05x7.87x4.37 | BC-AL-232011 | 2320A | |
230x200x180 | 9.05x7.87x7.08 | BC-AL-232018 | 2320A | |
230x280x111 | 9.05x11.02x4.37 | BC-AL-232811 | 2328A | |
230x330x111 | 9.05x12.99x4.37 | BC-AL-233311 | 2333A | |
313x404x111 | 12.32x15.90x4.37 | BC-AL-314011 | 3140A | |
313x404x181 | 12.32x15.90x7.12 | BC-AL-314018 | 3140A | |
Aluminum housing
1. Built-in guide slot for inserting PCB 2. Optional extension to length of the profile 3. Aluminum SBGL is suitable for highly corrosive environment(Customizing). 4. Optional EMC-version for Electromagnetic shielding(Customizing)
ขายแล้ว 0 ชิ้น
Aluminum box

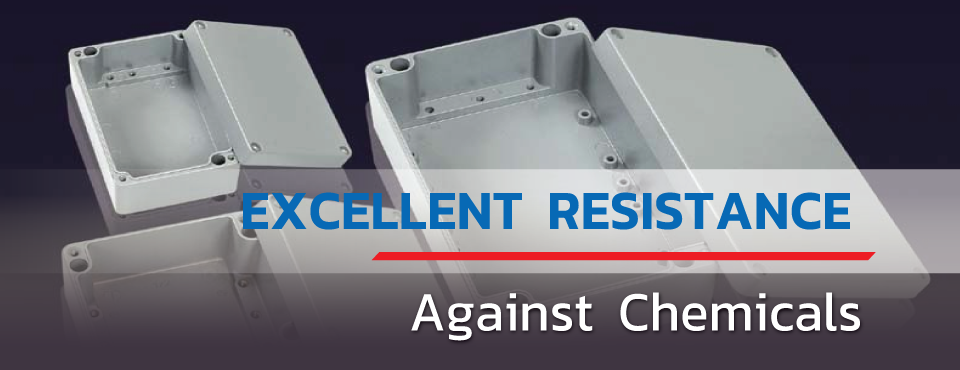

1. BOXCO's diecast aluminum enclosures have excellent resistance against chemicals. 2. It is sealed enclosure and can be used in wide temperature range. 3. It is proper to be used for indoor, outdoor or coastal area in harmful environment where expected to be contact with sea water.
