Q Series

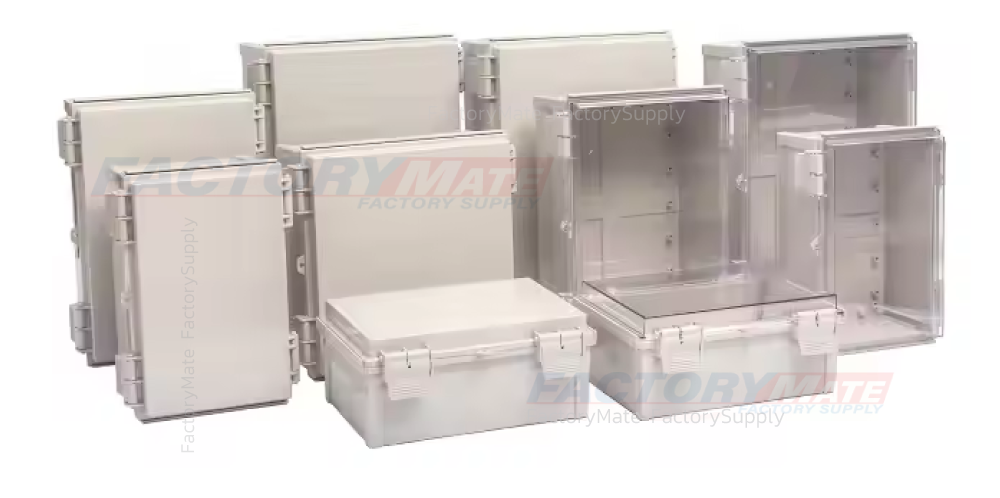

Q - SERIES
FEATURE
- Plastic hight, Plastic latch
- Q-101008-K has Knock out cover, base
SPECIFICATION
- IP Rating | IP66/67
- IK Rating | IK08
- Temperature range| ABS : 40 ~ + 70 PC : - 40 ~ + 110
- Flammability Rating |ABS : 94-HB PC : 94-V-0, 5VA, HB
- Certification|TUV, CE, UL

Q SERIES Model Name

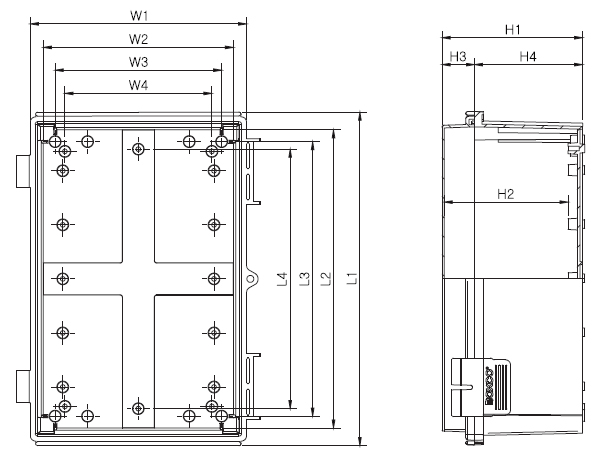

MODEL		Outside dimension			Inside dimension	Mounting Plate
MODEL		Outside dimension			Inside dimension	Steel SQ type	Plastic
ABS Grey cover	ABS Transparent cover	Cover (H3)	Base (H4)	Size (W1×L1×H1/mm)	Size (W2xL2xH2/mm)	Steel SQ type	G type	C type
BC-AGQ-101008-K	BC-ATQ-101008-K	20	60	100 x 100 x 80 x 25 (Knock out)	81 x 81 x 75	-	-	-

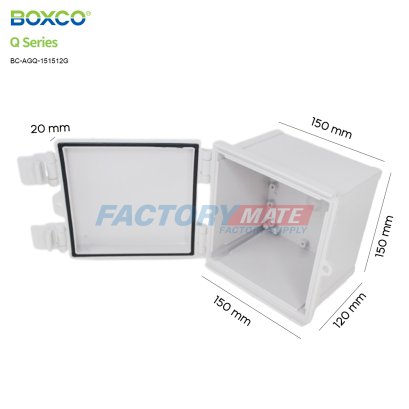

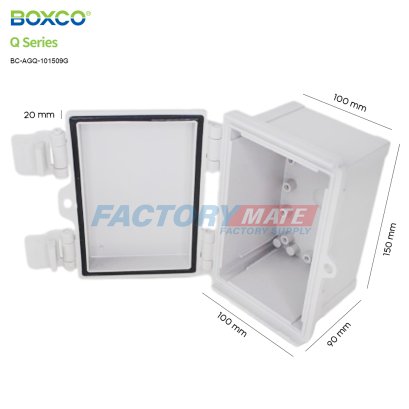

BC-AGQ-101509	BC-ATQ-101509	20	70	100 × 150 × 90	76 x 126 x 78	1015 SQ	1015 G	-
BC-AGQ-151509	BC-ATQ-151509	20	70	150 × 150 × 90	129 x 129 x 78	1515 SQ	1515 G	-
BC-AGQ-151512	BC-ATQ-151512	20	100	150 × 150 × 120	129 x 129 x 108	1515 SQ	1515 G	-
BC-AGQ-162110	BC-ATQ-162110	20	80	160 × 210 × 100	136 x 186 x 88	1520 SQ	1520 G	-
BC-AGQ-162113	BC-ATQ-162113	20	110	160 × 210 × 130	136 x 186 x 118	1520 SQ	1520 G	-
BC-AGQ-212113	BC-ATQ-212113	20	110	210 × 210 × 130	183 x 183 x 118	2020 SQ	2020 G	-
BC-AGQ-203013	BC-ATQ-203013	30	100	200 × 300 × 130	175 x 275 x 114	2030 SQ	2030 G	2030 C
BC-AGQ-203014	BC-ATQ-203014	30	110	200 × 300 × 140	175 x 275 x 104	2030 SQ	2030 G	2030 C
BC-AGQ-203015	BC-ATQ-203015	30	120	200 × 300 × 150	175 x 275 x 134	2030 SQ	2030 G	2030 C
BC-AGQ-203018	BC-ATQ-203018	30	150	200 × 300 × 180	175 x 275 x 164	2030 SQ	2030 G	2030 C
BC-AGQ-253516	BC-ATQ-253516	30	130	250 × 350 × 160	225 x 325 x 144	2535 SQ	2535 G	2535 C
BC-AGQ-303016	BC-ATQ-303016	30	130	300 × 300 × 160	270 x 270 x 144	3030 SQ	3030 G	3030 C
BC-AGQ-304015	BC-ATQ-304015	30	120	300 × 400 × 150	275 x 375 x 141	3040 SQ	3040 G	3040 C
BC-AGQ-304016	BC-ATQ-304016	30	130	300 × 400 × 160	275 x 375 x 144	3040 SQ	3040 G	3040 C
BC-AGQ-304018	BC-ATQ-304018	30	150	300 × 400 × 180	275 x 375 x 164	3040 SQ	3040 G	3040 C
BC-AGQ-354520	BC-ATQ-354520	30	170	350 × 450 × 200	317 x 417 x 183	3545 SQ	3545 G	-
BC-AGQ-405016	BC-ATQ-405016	30	130	400 × 500 × 160	369 x 469 x 143	4050 SQ	4050 G	-
BC-AGQ-405020	BC-ATQ-405020	30	170	400 × 500 × 200	369 x 469 x 183	4050 SQ	4050 G	-
