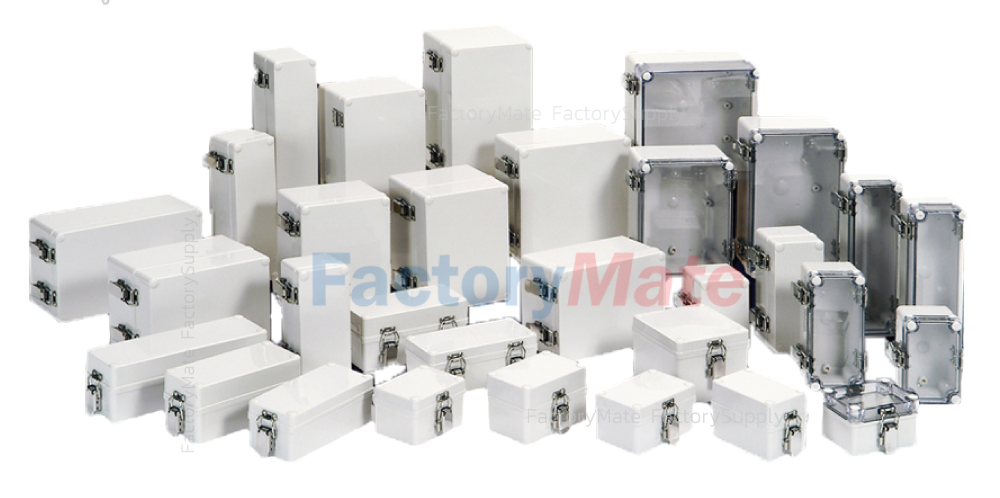

H-series Small Size
H - SERIES SMALL SIZE
FEATURE
- SUS hinge, SUS latch and insert
SPECIFICATION
- IP Rating | IP66/67
- IK Rating | IK08
- Temperature range| ABS : 40 ~ + 70 PC : - 40 ~ + 110
- Flammability Rating |ABS : 94-HB PC : 94-V-0, 5VA, HB
- Certification|TUV, CE, UL
H SERIES Model Name
FEATURE
- SUS hinge, SUS latch and insert
SPECIFICATION
- IP Rating | IP66/67
- IK Rating | IK08
- Temperature range| ABS : 40 ~ + 70 PC : - 40 ~ + 110
- Flammability Rating |ABS : 94-HB PC : 94-V-0, 5VA, HB
- Certification|TUV, CE, UL
H SERIES Model Name
➊ Material | A : ABS C : PC
➋ Cover | G : Grey T : Transparent
➌ Type | Screw Cover
➍ Width | (W)
➎ Length | (L)|
➏ Height | (H)
➋ Cover | G : Grey T : Transparent
➌ Type | Screw Cover
➍ Width | (W)
➎ Length | (L)|
➏ Height | (H)
| Size(included cover) | Model | Mounting Plate | |||||
|---|---|---|---|---|---|---|---|
W X L X H (mm) | W X L X H (inch) | ABS | PC | Steel 1.6mm | Plastic 3~4.5mm | ||
Grey cover | Transparent cover | Grey cover | Transparent cover | ||||
80x110x70 | 3.15x4.33x2.76 | BC-AGH-081107 | BC-ATH-081107 | BC-CGH-081107 | BC-CTH-081107 | 0811 S | 0811 P |
80x110x85 | 3.15x4.33x3.35 | BC-AGH-081108 | BC-ATH-081108 | BC-CGH-081108 | BC-CTH-081108 | 0811 S | 0811 P |
80x110x100 | 3.15x4.33x3.94 | BC-AGH-081110 | BC-ATH-081110 | BC-CGH-081110 | BC-CTH-081110 | 0811 S | 0811 P |
80x130x70 | 3.15x5.12x2.76 | BC-AGH-081307 | BC-ATH-081307 | BC-CGH-081307 | BC-CTH-081307 | 0813 S | 0813 P |
80x130x85 | 3.15x5.12x3.35 | BC-AGH-081308 | BC-ATH-081308 | BC-CGH-081308 | BC-CTH-081308 | 0813 S | 0813 P |
80x180x70 | 3.15x7.09x2.76 | BC-AGH-081807 | BC-ATH-081807 | BC-CGH-081807 | BC-CTH-081807 | 0818 S | 0818 P |
80x180x85 | 3.15x7.09x3.35 | BC-AGH-081808 | BC-ATH-081808 | BC-CGH-081808 | BC-CTH-081808 | 0818 S | 0818 P |
80x250x70 | 3.15x9.84x2.76 | BC-AGH-082507 | BC-ATH-082507 | BC-CGH-082507 | BC-CTH-082507 | 0825 S | 0825 P |
80x250x85 | 3.15x9.84x3.35 | BC-AGH-082508 | BC-ATH-082508 | BC-CGH-082508 | BC-CTH-082508 | 0825 S | 0825 P |
100x100x75 | 3.94x3.94x2.95 | BC-AGH-101007 | BC-ATH-101007 | BC-CGH-101007 | BC-CTH-101007 | 1010 S | 1010 P |
100x100x100 | 3.94x3.94x3.94 | BC-AGH-101010 | BC-ATH-101010 | BC-CGH-101010 | BC-CTH-101010 | 1010 S | 1010 P |
110x80x70 | 4.33x3.15x2.76 | BC-AGH-110807 | BC-ATH-110807 | BC-CGH-110807 | BC-CTH-110807 | 0811 S | 0811 P |
110x80x85 | 4.33x3.15x3.35 | BC-AGH-110808 | BC-ATH-110808 | BC-CGH-110808 | BC-CTH-110808 | 0811 S | 0811 P |
110x80x100 | 4.33x3.15x3.94 | BC-AGH-110810 | BC-ATH-110810 | BC-CGH-110810 | BC-CTH-110810 | 0811 S | 0811 P |
125x125x75 | 4.92x4.92x2.95 | BC-AGH-121207 | BC-ATH-121207 | BC-CGH-121207 | BC-CTH-121207 | 1212 S | 1212 P |
125x125x100 | 4.92x4.92x3.94 | BC-AGH-121210 | BC-ATH-121210 | BC-CGH-121210 | BC-CTH-121210 | 1212 S | 1212 P |
125x175x75 | 4.92x6.89x2.95 | BC-AGH-121707 | BC-ATH-121707 | BC-CGH-121707 | BC-CTH-121707 | 1217 S | 1217 P |
125x175x100 | 4.92x6.89x3.94 | BC-AGH-121710 | BC-ATH-121710 | BC-CGH-121710 | BC-CTH-121710 | 1217 S | 1217 P |
130x80x70 | 5.12x3.15x2.76 | BC-AGH-130807 | BC-ATH-130807 | BC-CGH-130807 | BC-CTH-130807 | 0813 S | 0813 P |
130x80x85 | 5.12x3.15x3.35 | BC-AGH-130808 | BC-ATH-130808 | BC-CGH-130808 | BC-CTH-130808 | 0813 S | 0813 P |
140x230x95 | 5.51x9.06x3.74 | BC-AGH-142309 | BC-ATH-142309 | BC-CGH-142309 | BC-CTH-142309 | 1423 S | 1423 P |
140x170x95 | 5.51x6.69x3.74 | BC-AGH-141709 | BC-ATH-141709 | BC-CGH-141709 | BC-CTH-141709 | 1417 S | 1417 P |
