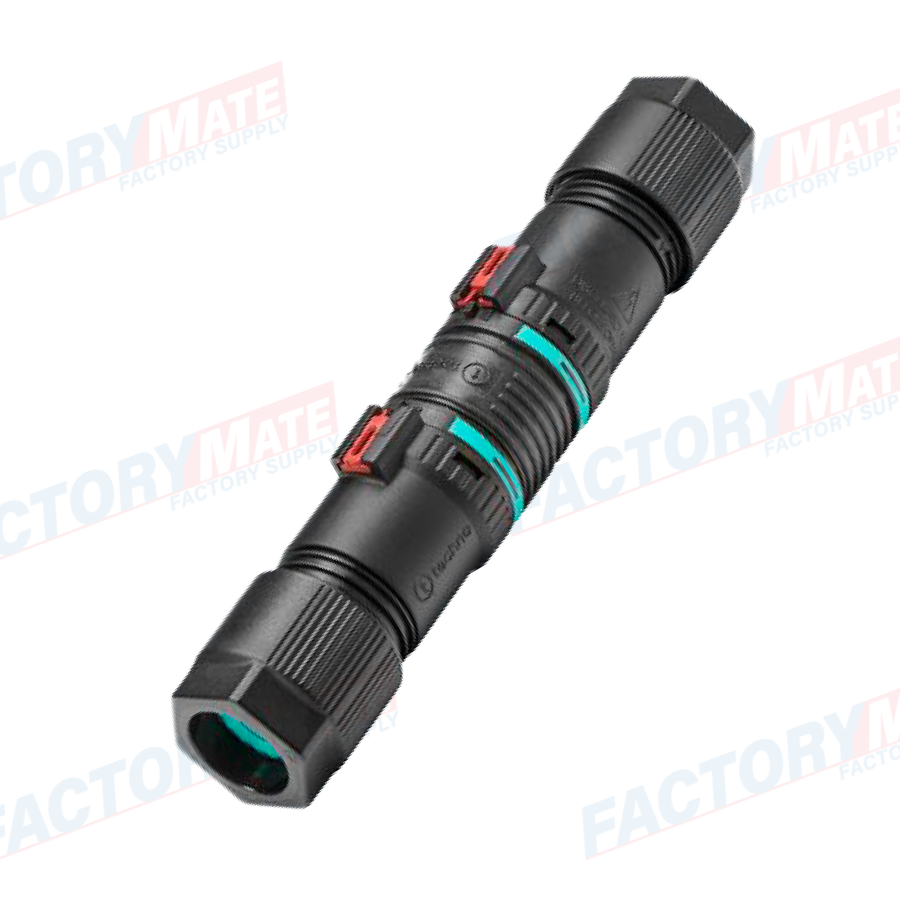

Joint Connector 4p Screwless D7-13 IP66/IP68

Joint Connector 4p Screwless D7-13 IP66/IP68In-line and branch electrical
Connection joints, are resistant to water and dust, free of resin or gel components and can be re-inspected and re-accessible even after long periods of use. Ideal for connections in small spaces and with a high degree of protection.

General Information
Type of installation: Joint connector (re-usable/re-accessible)
Product configuration: In-line connector
Colour: Black/Green (Plastic components) - Techno green (Rubber components)
Overall dimensions (mm): Ø 23.0 x 122.0

Electric Data
No. connected cables: 2
Circuit wiring diagram: Power/Signal
Current rating (AC/DC): 450V AC
No. poles: 4
Marking2-3/: Screwless
Terminations Thread/Tightening torque: M2 - 0.2 Nm

Connection Data
Multi-stranded conductor cross-section without ferrule MIN (mm²): 0.25
Multi-stranded conductor cross-section without ferrule MAX (mm²): 1.50
Solid conductor cross-section MIN (mm²): 0.25
Solid conductor cross-section MAX (mm²): 1.50
Conductor stripping length (mm): 25.00
Cable sheath stripping length (mm): 6.00
Reccomended types of cable: H05xxx/H07xxx
Cable diameter MIN (mm): 7.00
Cable diameter MAX (mm): 13.00
Tightening torque of nut-cable gland: 2.5 Nm

Environment Conditions
IP rating: IP66, IP68 *IP68 (5m/1h)
IK rating: IK08
Salt MistSalt mist test : EN60068-2-11:2000
T marking: T 85°C
Ambient temperature MIN/MAX (According to EN61984/EN60998): -40°C/+125°C
Proof Tracking Index (PTI): PTI 175
