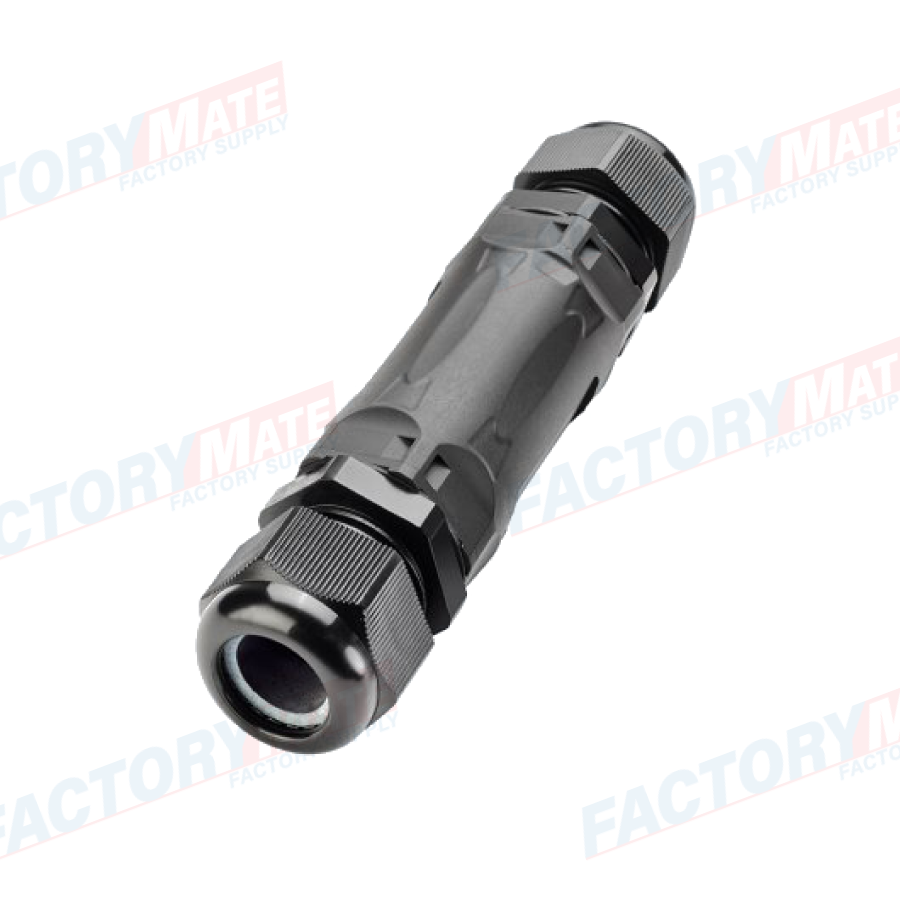

Joint Connector 3p Screw 6mm2 D15-21 IP66/IP68

Joint Connector 3p Screw 6mm2 D15-21 IP66/IP68
In-line and branch electrical connection joints, free of resin or gel components, are resistant to water and dust and can be re-inspected and re-accessible even after long periods of use. Ideal for connections in small spaces and with a high degree of protection.

General Information
Type of installation: Joint connector (re-usable/re-accessible)
Product configuration: In-line connector
ColourBlack:  (Plastic components and Rubber components)
Overall dimensions:  (mm)Ø 40.0 x 165.0

Electric Data
No. connected cables: 2
Circuit wiring diagram: Power
Current rating (AC/DC): 41A
Voltage rating (AC/DC): 690V
No.poles: 3
Marking: 1-2-E
Terminations: Screw
Terminations: Thread/Tightening torqueM5 - 2.0 Nm

Connection Data
Multi-stranded conductor cross-section without ferrule MIN (mm²): 1.50
Multi-stranded conductor cross-section without ferrule MAX (mm²): 6.00
Solid conductor cross-section MIN (mm²): 1.50
Solid conductor cross-section MAX (mm²): 6.00
Conductor stripping length (mm): 12.00
Cable sheath stripping length (mm): 30.00
Cable diameter MIN (mm): 15.00
Cable diameter MAX (mm): 21.00
Tightening torque of cable gland-connector: 4.0 Nm
Tightening torque of nut-cable gland: 4.0 Nm

Product Compliances
IEC Approvals: EN 60998-1:2004
