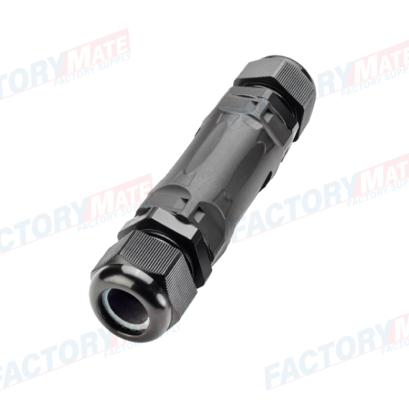

THP.391.A2A.L TH391 - In-line circular mini-joint connector type "I" IP68/IP69K
คุณสมบัติสินค้า:
Product name (Series) TH391 - In-line circular mini-joint connector tipo "I" IP68/IP69K Product configuration In-line joint connector Number of poles 2 Type of connection insulation piercing screw (M3 - max. 1.0 Nm) Cable diameter min. - max. 7.0 mm - 13.5 mm Operating current max. 17.5A Operating voltage max. 450V AC Wire cross-section min. - max. (Stranded cable) 0.5 mm2 - 1.5 mm2
หมวดหมู่ : CONNECTORS , IP68 Hi-End Connectors for Lighting & Industrial ,
| GENERAL DESCRIPTION | |
| Brand | Techno Connector |
| Type of installation | Joint connector (re-usable/re-accessible) |
| Type of product (Family) | TEETUBE® - In-line and junction circular connectors IP68/IP69K |
| Product name (Series) | TH391 - In-line circular mini-joint connector tipo "I" IP68/IP69K |
| Product configuration | In-line joint connector |
| Type of Fixation | With quick-fix mounting clip |
| Colour | Black (Plastic components) - Techno green (Rubber components) |
| Outer dimension | Φ 23 mm x 95 mm |
| ELECTRICAL CHARACTERISTICS | |
| Number of poles | 2 |
| Contact marking | 1-3 |
| Type of connection | insulation piercing screw (M3 - max. 1.0 Nm) |
| Operating current | max. 17.5A |
| Operating voltage | max. 450V AC |
| MECHANICAL CHARACTERISTICS | |
| Protection against solid/water(IP) | 0.5 mm2 - 1.5 mm2• You can wire quickly with the insulation piercing system without stripping the conductor insulation. Suitable for cables from 0.5mm2 to 1.5mm2 (max. 17.5A). |
| Corrosion resistance | 7.0 mm - 13.5 mm |
| MATERIAL CHARACTERISTICS | |
| Connector housing | PA66 GF UL94 V0 GWT 960°C |
| Cable gland | PA66 UL94 V2 GWT 850°C |
| Sealing | TPE |
| Grommets | TPE |
| Contacts | CuZn (nickel plated) |
| Screws | Steel (rivestimento Ottone) |
| Material properties | Halogen Free - Silicone Free |
| T marking | T 85°C |
| Operating temperature range | -40°C / +125°C |
| Proof Tracking Index (PTI) | PTI 250 |
