Product name (Series)TH387 - mini-Plug&Socket connector IP66/IP68 Product configurationSocket connector (cable-to-cable) Number of poles2 Type of connectioninsulation piercing screw (M3 - max. 1.0 Nm) Cable diameter min. - max.7.0 mm - 13.5 mm Operating currentmax. 17.5A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 1.5 mm2

Product name (Series)TH387 - mini-Plug&Socket connector IP66/IP68 Product configurationPlug connector (cable-to-cable) Number of poles2 Type of connectioninsulation piercing screw (M3 - max. 1.0 Nm) Cable diameter min. - max.7.0 mm - 13.5 mm Operating currentmax. 17.5A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 1.5 mm2

Product name (Series)TH387 - mini-Plug&Socket connector IP66/IP68 Product configurationPlug connector (cable-to-cable) Number of poles2 Type of connectionscrew (M3 - max. 0.5 Nm) Cable diameter min. - max.7.0 mm - 12.0 mm Operating currentmax. 17.5A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 4.0 mm2

Product name (Series)TH387 - mini-Plug&Socket connector IP66/IP68 Product configurationSocket connector (cable-to-cable) Number of poles2 Type of connectionscrew (M3 - max. 0.5 Nm) Cable diameter min. - max.7.0 mm - 12.0 mm Operating currentmax. 17.5A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 4.0 mm2

Product name (Series)TH211 - Junction box 3 vie tipo "T" IP65 Product configurationJunction box with terminal block Number of poles3 Type of connectionscrew (M3 - max. 0.5 Nm) Cable diameter min. - max.8.0 mm - 17.0 mm (main cable) / 8.0 mm - 17.0 mm (branch cable) Operating currentmax. 24A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 4.0 mm2

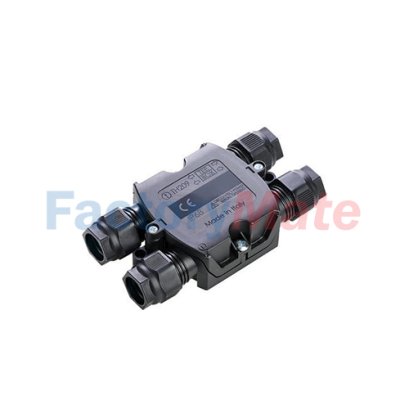

Product name (Series)TH209 - Junction box 4 vie tipo "H" IP68 Product configurationJunction box with terminal block Number of poles3 Type of connectionscrew (M3 - max. 0.5 Nm) Cable diameter min. - max.7.0 mm - 14.0 mm (main cable) / 7.0 mm - 14.0 mm (branch cable) Operating currentmax. 24A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 4.0 mm2

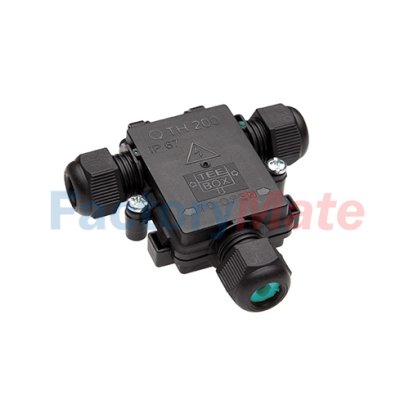

Product name (Series)TH200 - mini-Junction box 3 vie tipo "T" IP67 Product configurationJunction box with terminal block Number of poles3 Type of connectionscrew (M3 - max. 0.5 Nm) Cable diameter min. - max.7.5 mm - 9.5 mm (main cable) / 7.5 mm - 9.5 mm (branch cable) Operating currentmax. 16A Operating voltagemax. 250V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 1.5 mm2

Product name (Series)TH392 - Circular mini-junction connector 4 vie tipo "H" IP68 Product configurationIn-line joint connector Number of poles4 Type of connectionscrew (M3 - max. 0.5 Nm) Cable diameter min. - max.7.0 mm - 13.5 mm (main cable) / 7.0 mm - 13.5 mm (branch cable) Operating currentmax. 17.5A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 4.0 mm2

Product name (Series)TH392 - Circular mini-junction connector 4 vie tipo "H" IP68 Product configurationIn-line joint connector Number of poles4 Type of connectionscrew (M3 - max. 0.5 Nm) Cable diameter min. - max.5.0 mm - 12.0 mm (main cable) / 5.0 mm - 12.0 mm (branch cable) Operating currentmax. 17.5A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 4.0 mm2

Product name (Series)TH399 - Circular mini-junction connector 3 vie tipo "Y" IP68 Product configurationIn-line joint connector Number of poles2 Type of connectionscrew (M3 - max. 0.5 Nm) Cable diameter min. - max.8.0 mm - 17.0 mm (main cable) / 8.0 mm - 17.0 mm (branch cable) Operating currentmax. 32A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 1.5 mm2

Product name (Series)TH402 - Giunto circolare di derivazione a 3 vie tipo "T" IP68 Product configurationIn-line joint connector Number of poles2 Type of connectionscrew (M3 - max. 0.5 Nm) Cable diameter min. - max.7.0 mm - 13.5 mm (main cable) / 7.0 mm - 13.5 mm (branch cable) Operating currentmax. 32A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 4.0 mm2

Product name (Series)TH390 - Circular mini-junction connector 3 vie tipo "T" IP68 Product configurationIn-line joint connector Number of poles2 Type of connectionscrew with push-wire clamp (M3 - max. 0.5 Nm) Cable diameter min. - max.7.0 mm - 13.5 mm (main cable) / 7.0 mm - 13.5 mm (branch cable) Operating currentmax. 24A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.25 mm2 - 1.5 mm2

Product name (Series)TH401 - Giunto circolare di connessione angled 90° tipo "L" IP68 Product configurationIn-line joint connector Number of poles2 Type of connectioninsulation piercing screw (M3 - max. 1.0 Nm) Cable diameter min. - max.7.0 mm - 13.5 mm (input) / 7.0 mm - 13.5 mm (output) Operating currentmax. 17.5A Operating voltagemax. 450V AC Wire cross-section min. - max. (Stranded cable)0.5 mm2 - 1.5 mm2

Product name (Series) TH391 - In-line circular mini-joint connector tipo "I" IP68 Number of poles 2 Type of connection screw (M3 - max. 0.5 Nm) Cable diameter min. - max. 7.0 mm - 12.0 mm Operating current max. 32A Operating voltage max. 450V AC

Product name (Series) TH391 - In-line circular mini-joint connector tipo "I" IP68 Product configuration In-line joint connector Number of poles 2 Type of connection screw with push-wire clamp (M3 - max. 0.5 Nm) Cable diameter min. - max. 7.0 mm - 12.0 mm Operating current max. 24A Operating voltage max. 450V AC Wire cross-section min. - max. (Stranded cable) 0.25 mm2 - 2.5 mm2

SCREW TERMINALS Circular mini-joint connectors IP68 with screw terminals (cable cross-section max. 4.0 mm2)

SCREW TERMINALS Circular mini-joint connectors IP68 with screw terminals (cable cross-section max. 4.0 mm2)
