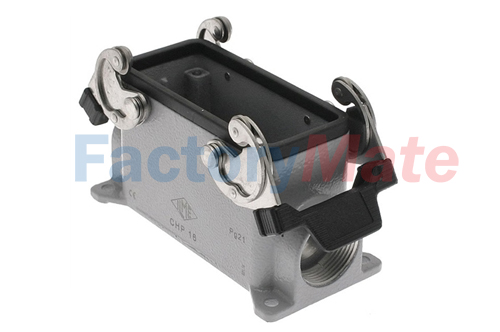

CHP-16 C-Type Surface Mount Housing, Size 77.27, Double Lever, PG 21
คุณสมบัติสินค้า:
The ILME CHP-16 C-Type surface mount standard housing is size 77.27 and features two levers with a PG 21 cable entry. The body is epoxy coated die cast aluminum with a polyamide handle and stainless steel levers. Insert center distance: 77.5 x 27 mm. Rated IP 66 when attached and locked down. The clamping force supplied by the CHP-16 is constant due to the stainless steel locking system.
หมวดหมู่ : CONNECTORS , ILME Multipole Connectors , Hood & Housing-Multipole Connector ,
แบรนด์ : ILME
The ILME CHP-16 C-Type surface mount standard housing is size 77.27 and features two levers with a PG 21 cable entry. The body is epoxy coated die cast aluminum with a polyamide handle and stainless steel levers. Insert center distance: 77.5 x 27 mm. Rated IP 66 when attached and locked down. The clamping force supplied by the CHP-16 is constant due to the stainless steel locking system.
| Specifications | |
| Brand | ILME |
| Body | Epoxy Coated Die Cast Aluminum |
| Gasket | Thermoplastic Elastomer |
| Handle | Polyamide |
| Lever | Stainless Steel |
| ILME Series | CH |
| Insert Dimension | 77.27 |
| Enclosure Dimension | 77.27 |
| Housing Type | Standard |
| Enclosure Type | 2 Levers |
| Mounting Style | Surface Mount |
| Temperature Range | 40 C to 125 C (-40 F to 257 F) |
| Hood Entry | Side |
| Hood Thread | PG 21 |
| Gasket | Yes |
| Ingress Protection | IP66 (and IP69 DIN 40050 - 9) |
| Insert Center Distance | 77.5 x 27 mm |
| Approvals | C UR US, CCC, GL |
